产品标签: 定制Pogo Pin, 定制弹簧针

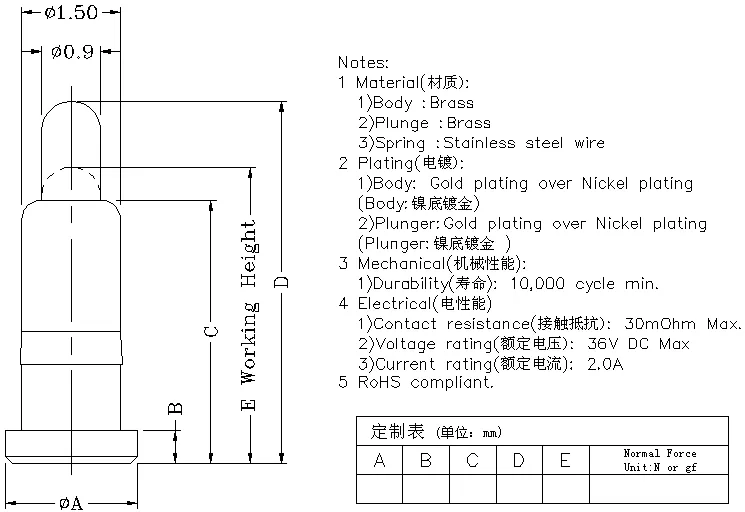

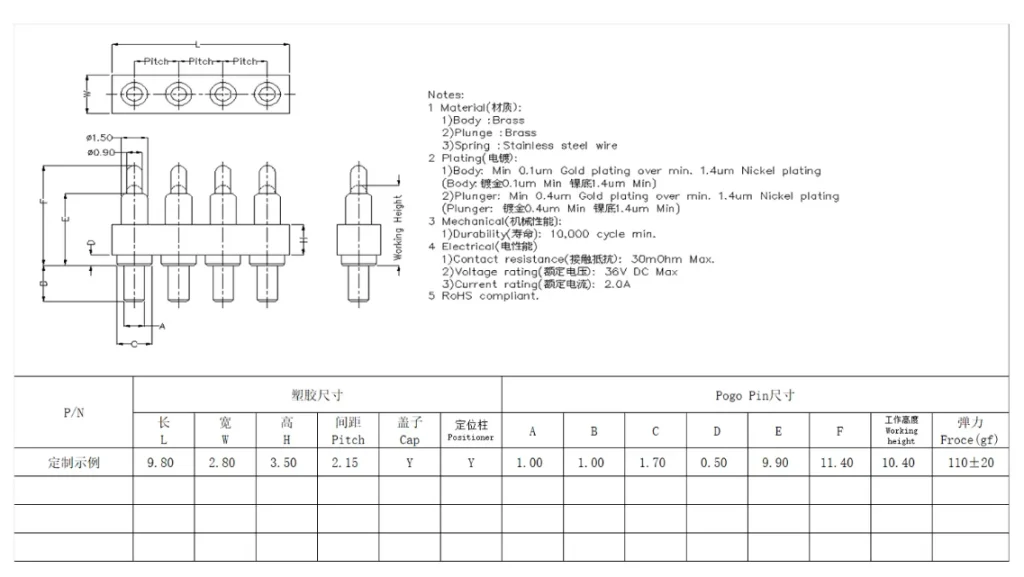

Part No. | ∅ A | B | C | D | E | Force(gf) |
---|---|---|---|---|---|---|
20101011233 | 1.20 | 0.60 | 1.45 | 1.95 | 1.60 | 35gf Min |
101245-1 | 2.00 | 0.40 | 2.20 | 3.00 | 2.40 | 90 Min |
10101011363 | 1.80 | 0.50 | 2.30 | 3.00 | 2.50 | 90 Min |
101089-1 | 1.65 | 0.40 | 2.20 | 3.00 | 2.50 | 90 Min |
101603-1 | 1.65 | 0.40 | 2.20 | 3.00 | 2.50 | 90 Min |
101022-1 | 1.65 | 0.60 | 2.40 | 3.20 | 2.70 | 90 Min |
101080-1 | 1.80 | 0.40 | 2.50 | 3.30 | 2.80 | 90±20 |
101121-1 | 2.00 | 0.40 | 2.50 | 3.30 | 2.80 | 90±20 |
101281-1 | 2.00 | 0.40 | 2.50 | 3.50 | 2.80 | 100±35 |
101009-1 | 2.00 | 0.40 | 2.50 | 3.50 | 2.90 | 100±30 |
101056-1 | 2.00 | 0.40 | 2.70 | 3.50 | 2.90 | 60 Min |
101259-1 | 1.80 | 0.40 | 2.50 | 3.50 | 2.90 | 80±25 |
101299-1 | 2.00 | 0.40 | 2.50 | 3.50 | 2.90 | 90±30 |
101607-1 | 2.00 | 0.40 | 2.50 | 3.50 | 2.90 | 80±20 |
101489-1 | 2.00 | 0.40 | 2.70 | 3.70 | 3.00 | 75±18 |
101078-1 | 2.00 | 0.40 | 2.70 | 3.80 | 3.10 | 80±30 |
101386-1 | 1.80 | 0.40 | 2.50 | 3.50 | 3.10 | 20.00 |
101411-1 | 2.00 | 0.40 | 2.70 | 3.80 | 3.10 | 70 Min |
101112-1 | 1.90 | 0.90 | 2.90 | 4.00 | 3.20 | 120±30 |
101277-1 | 2.00 | 0.40 | 2.70 | 4.00 | 3.20 | 80±25 |
101400-1 | 1.80 | 0.50 | 3.10 | 4.20 | 3.40 | 110±25 |
101030-1 | 2.00 | 0.50 | 3.00 | 4.00 | 3.50 | 65 Min |
101046-1 | 2.00 | 0.50 | 3.00 | 4.00 | 3.50 | 110±25 |
101088-1 | 2.00 | 0.50 | 3.00 | 4.30 | 3.50 | 120±30 |
101197-1 | 2.00 | 0.50 | 3.30 | 4.60 | 3.50 | 100 Min |
101499-1 | 2.00 | 0.50 | 3.00 | 4.30 | 3.50 | 65 Min |
101187-1 | 2.00 | 0.50 | 3.30 | 4.60 | 3.60 | 100 Min |
101211-1 | 2.00 | 0.50 | 3.00 | 4.50 | 3.60 | 180 Max |
101450-1 | 1.65 | 0.80 | 3.30 | 4.60 | 3.60 | 100+60/-20 |
101060-1 | 2.00 | 0.50 | 3.50 | 4.80 | 3.80 | 80 Min |
101110-1 | 2.00 | 0.50 | 3.30 | 4.80 | 3.80 | 90 Min |
101004-1 | 2.70 | 1.90 | 3.50 | 5.00 | 4.00 | 138±35 |
101029-1 | 2.00 | 0.50 | 3.50 | 5.00 | 4.00 | 50 Min |
101068-1 | 1.90 | 1.00 | 3.50 | 5.00 | 4.00 | 95 Min |
101100-1 | 2.00 | 0.50 | 3.50 | 5.00 | 4.00 | 120±30 |
101196-1 | 2.00 | 0.50 | 3.50 | 5.00 | 4.00 | 150±25 |
101217-1 | 2.00 | 0.50 | 3.50 | 5.00 | 4.00 | 80 Min |
101198-1 | 1.65 | 0.70 | 3.70 | 5.20 | 4.20 | 135±30 |
101216-1 | 1.65 | 0.70 | 3.70 | 5.50 | 4.30 | 180±30 |
101065-1 | 2.00 | 0.50 | 3.70 | 5.20 | 4.35 | 120±25 |
101135-1 | 2.00 | 0.50 | 3.70 | 5.20 | 4.35 | 75±15 |
101001-1 | 2.00 | 0.50 | 4.00 | 5.50 | 4.50 | 120+30/-20 |
101138-1 | 2.00 | 0.50 | 4.00 | 6.00 | 4.50 | 165±30 |
101258-1 | 2.00 | 0.50 | 4.00 | 5.50 | 4.50 | 75±25 |
101360-1 | 2.00 | 0.50 | 4.00 | 5.50 | 4.50 | 30±15 |
101501-1 | 1.65 | 0.70 | 3.70 | 5.50 | 4.50 | 50±10 |
101502-1 | 2.00 | 0.50 | 4.00 | 5.50 | 4.50 | 50±10 |
101177-1 | 1.90 | 0.50 | 4.20 | 5.70 | 4.70 | 60 Min |
101414-1 | 2.70 | 1.90 | 4.00 | 5.50 | 4.70 | 140±25 |
101476-1 | 2.70 | 1.90 | 3.50 | 5.50 | 4.70 | 125±25 |
101010-1 | 2.00 | 0.50 | 4.00 | 5.80 | 4.80 | 90Min |
101398-1 | 2.00 | 0.50 | 3.30 | 5.50 | 4.80 | 60 Max |
101076-1 | 1.80 | 1.30 | 4.50 | 6.30 | 5.00 | 90 Min |
101134-1 | 1.80 | 1.30 | 4.50 | 6.00 | 5.00 | 80 Min |
101175-1 | 2.00 | 0.50 | 4.50 | 6.50 | 5.00 | 90 Min |
101282-1 | 2.10 | 1.50 | 4.50 | 6.00 | 5.00 | 80±15 |
101293-1 | 1.75 | 0.50 | 4.40 | 6.10 | 5.00 | 82+15/-10 |
101519-1 | 2.00 | 0.50 | 4.50 | 6.50 | 5.00 | 200 Max |
101120-1 | 2.00 | 0.50 | 4.50 | 6.30 | 5.10 | 95 Min |
101672-1 | 0.00 | 0.00 | 4.70 | 6.35 | 5.15 | 100±20 |
101246-1 | 2.00 | 0.50 | 4.00 | 6.00 | 5.20 | 65±25 |
101294-1 | 2.00 | 0.50 | 4.00 | 6.30 | 5.25 | 120+30/-20 |
101103-1 | 2.30 | 1.00 | 4.80 | 6.30 | 5.30 | 80±20 |
101023-1 | 2.00 | 1.00 | 5.00 | 6.50 | 5.50 | 125±30 |
101052-1 | 2.00 | 1.00 | 5.00 | 7.00 | 5.50 | 157±30 |
101079-1 | 2.00 | 1.00 | 5.00 | 6.80 | 5.50 | 100 Min |
101083-1 | 1.80 | 0.80 | 5.00 | 6.50 | 5.50 | 95 Min |
101093-1 | 2.00 | 1.00 | 5.00 | 6.50 | 5.50 | 110+30/-20 |
101106-1 | 1.80 | 0.50 | 5.00 | 6.50 | 5.50 | 95 Min |
101218-1 | 1.80 | 1.30 | 4.50 | 6.80 | 5.50 | 90 Min |
101284-1 | 2.00 | 1.00 | 5.00 | 7.00 | 5.50 | 80±35 |
101460-1 | 2.00 | 0.50 | 5.00 | 7.00 | 5.50 | 80±35 |
101640-1 | 1.80 | 1.30 | 5.00 | 7.60 | 5.50 | 90 Min |
101683-1 | 0.00 | 0.00 | 5.20 | 6.85 | 5.65 | 100±20 |
101724-1 | 0.00 | 0.00 | 4.70 | 6.85 | 5.65 | 100±20 |
101055-1 | 1.80 | 0.50 | 5.00 | 7.00 | 5.70 | 150±30 |
101406-1 | 2.12 | 1.50 | 5.30 | 6.80 | 5.70 | 66±25 |
101464-1 | 2.12 | 1.50 | 5.30 | 6.80 | 5.70 | 65±25 |
101209-1 | 2.30 | 1.00 | 4.80 | 6.60 | 5.80 | 70±25 |
101530-1 | 2.00 | 1.00 | 5.50 | 7.50 | 5.90 | 80±25 |
101331-1 | 2.00 | 1.00 | 5.00 | 7.00 | 6.00 | 25±15 |
101455-1 | 2.00 | 1.00 | 5.00 | 7.00 | 6.00 | 75±25 |
101155-1 | 2.00 | 1.00 | 5.80 | 7.30 | 6.20 | 132±30 |
101054-1 | 3.00 | 2.00 | 5.50 | 7.30 | 6.30 | 100 Min |
101133-1 | 1.80 | 0.50 | 5.00 | 7.50 | 6.30 | 120±30 |
101025-1 | 1.80 | 0.80 | 6.10 | 7.60 | 6.50 | 110±25 |
101042-1 | 2.80 | 1.50 | 5.50 | 7.50 | 6.50 | 100+60/-20 |
101048-1 | 3.00 | 2.00 | 5.50 | 8.00 | 6.50 | 150±30 |
101057-1 | 2.00 | 1.00 | 5.00 | 7.30 | 6.50 | 190±30 |
101063-1 | 2.00 | 1.00 | 5.50 | 7.50 | 6.50 | 80 Min |
101066-1 | 2.50 | 2.50 | 5.00 | 7.50 | 6.50 | 130±30 |
101166-1 | 1.80 | 0.50 | 5.00 | 7.50 | 6.50 | 70±20 |
101325-1 | 2.00 | 0.50 | 5.60 | 8.10 | 6.60 | 70±25 |
101069-1 | 1.80 | 0.80 | 6.10 | 7.90 | 6.70 | 100 Min |
101102-1 | 2.12 | 1.50 | 5.90 | 7.90 | 6.70 | 90 Min |
101036-1 | 2.00 | 1.50 | 6.00 | 8.00 | 6.90 | 110±30 |
101067-1 | 2.00 | 1.50 | 6.00 | 8.50 | 7.00 | 140±30 |
101230-1 | 2.00 | 1.00 | 5.80 | 7.80 | 7.00 | 120±30 |
101740-1 | 2.00 | 0.50 | 5.50 | 8.50 | 7.00 | 80 Min |
101020-1 | 2.00 | 1.90 | 6.50 | 8.50 | 7.15 | 168±25 |
101146-1 | 1.80 | 0.80 | 6.10 | 8.60 | 7.20 | 90 Min |
101125-1 | 2.00 | 1.50 | 6.00 | 8.80 | 7.45 | 100 Min |
101043-1 | 2.80 | 1.50 | 6.60 | 8.60 | 7.50 | 110+60/-20 |
101047-1 | 1.90 | 1.90 | 6.50 | 8.50 | 7.50 | 120+60/-20 |
101268-1 | 2.00 | 1.90 | 6.50 | 8.50 | 7.50 | 90±35 |
101148-1 | 2.00 | 1.90 | 6.50 | 9.00 | 7.60 | 115±30 |
101147-1 | 2.00 | 1.60 | 7.20 | 9.20 | 7.80 | 125±25 |
101041-1 | 2.80 | 1.50 | 7.30 | 9.30 | 8.00 | 120+60/-20 |
101062-1 | 2.00 | 1.60 | 7.20 | 9.00 | 8.00 | 100±35 |
101354-1 | 2.00 | 1.60 | 7.20 | 9.70 | 8.50 | 100 Min |
101044-1 | 2.80 | 1.50 | 8.00 | 10.00 | 8.80 | 120+60/-20 |
101014-1 | 2.00 | 1.60 | 7.20 | 10.00 | 9.00 | 100±25 |
101045-1 | 2.80 | 1.50 | 8.50 | 10.50 | 9.00 | 120+60/-20 |
101039-1 | 2.80 | 1.50 | 8.50 | 11.30 | 9.80 | 120 Min |
101184-1 | 1.80 | 3.00 | 8.00 | 10.80 | 9.80 | 120 Min |
101040-1 | 2.80 | 1.50 | 9.50 | 12.30 | 11.20 | 100 Min |
20101011122 | 2.00 | 0.50 | 3.20 | 4.50 | 3.60 | 80 min |
20101011180 | 2.00 | 0.60 | 3.00 | 4.00 | 3.20 | 100±30 |
20101011506 | 1.80 | 0.40 | 6.10 | 7.80 | 6.80 | 70±15 |
20101011424 | 1.90 | 0.40 | 2.40 | 3.20 | 2.75 | 50±10 |
20101011608 | 1.90 | 0.50 | 3.60 | 4.90 | 3.90 | 110±25 |
20101011800 | 2.60 | 1.80 | 5.25 | 6.55 | 5.80 | 80±15 |
20101011801 | 2.60 | 1.80 | 5.25 | 6.55 | 5.80 | 110±20 |
20101011257 | 2.00 | 0.40 | 1.85 | 2.50 | 2.00 | 50±10 |
20101011258 | 2.00 | 0.40 | 2.20 | 3.20 | 2.35 | 50±10 |
20101011274 | 1.50 | 0.40 | 2.40 | 3.20 | 2.80 | 70±20 |
20101011345 | 1.90 | 0.50 | 3.40 | 4.80 | 4.10 | 150±30 |
20101011346 | 1.90 | 0.50 | 4.20 | 5.60 | 5.00 | 80±20 |
Part No. | ∅ A | B | C | D | E | Force(gf) |
